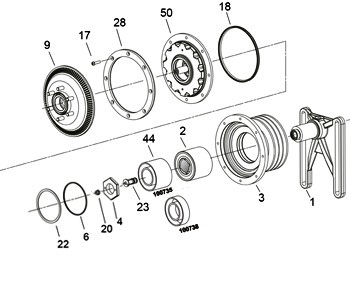

Repair Kit Subview
Comments: 100731 "Long" DRAC Bearing
| Item | Description | Part No | Qty |
|---|---|---|---|
| O-RING LUBRICANT | 994004 | 1 | |
| 2 | SHEAVE BEARING, INCLUDES BEARING INSTALLATION TOOL | - | 1 |
| 4 | BEARING NUT | - | 1 |
| 6 | O-RING SEAL | - | 1 |
| 9 | FAN MOUNTING DISC/STUDS | - | 1 |
| 17 | BUTTON HEAD SCREWS | - | 8 |
| 18 | AIR CHAMBER SEAL | - | 1 |
| 20 | FACE SEAL | - | 1 |
| 22 | RETAINING RING | - | 1 |
| 23 | AIR CHAMBER ASSEMBLY | - | 1 |
| 24 | RETAINING RING | - | 1 |
| 28 | FRICTION LINER | - | 1 |
| 44 | Bearing Spacers (Matched Sets) | 100735, 100738 | 2 |
| 50 | SPRING HOUSING/PISTON | - | 1 |
| 55 | CAGE NUT (USED FOR REPAIRS ONLY) | - | 1 |
