995575: DM Advantage Conversion Super Kit(1.07" Studs, 2.56" Pilot, 61 mm "Long" DRAC Brg). Replaced by 1S-DP-L

Comments: REPLACED BY 1S-DP-L. 61 mm "Long" DRAC Sheave Bearing.

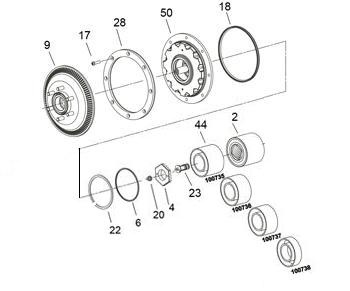

Item Description Part No Qty
2 Bearing 100731 1
4 Bearing Nut 994931 1
6 O-Ring Seal 994346 1
9 Fan Mounting Disc/Studs 994348 1
17 Button Head Screws - 8
18 Air Chamber Seal 994346 1
20 Face Seal 994346 1
22 Retaining Ring 994346 1
23 Air Cartridge Assembly 995634 1
24 Cartridge Retaining Ring(Not Pictured) 994346 1
28 Friction Liner 994349 1
44 Bearing Spacers 100735, 100736, 100737, 100738 4
50 Spring Housing/Piston 995036 1
