Repair Kit Subview

**1S-DP: DM Advantage Dual Pilot On/Off Quick Kit(39 mm Sheave/Pulley Bearing). Applicable to both 2.56" and 5.00" Fan Pilots. 1S-DP-L required for units with 61mm Sheave/Pulley bearing.**
Comments: Replaces 994347, 994385, Q995568, 995530, 995607, 795568, 995568, 995606 and 995635. 1S-DP-L required for 61 mm sheave brg.

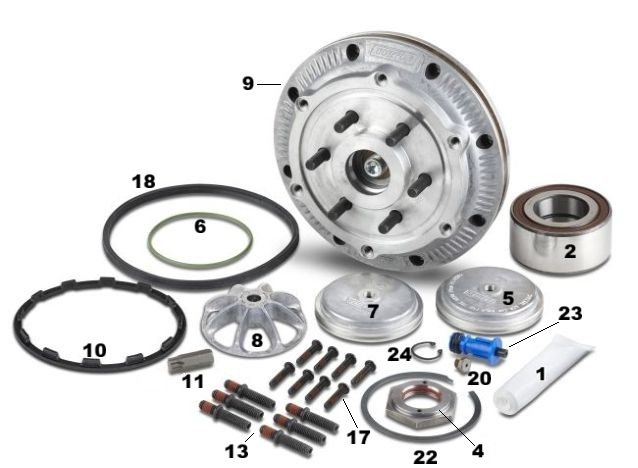

Item	Description	Part No	Qty
20	Face Seal	-	1
1	O-RING LUBRICANT	17252	1
2	SHEAVE BEARING	995550	1
4	BEARING NUT	-	1
5	AIR CHAMBER CAP (short)	19141	1
6	Air Cap O-Ring	-	1
9	Quick Kit Clutch Pack Assembly	-	1
17	Button Head Liner Screws	-	8
18	Air Chamber Seal	-	1
13	5.00" Pilot Stud Kit	995605	6
22	Air Cap Retaining Ring	-	1
23	Air Cartridge Assembly	995634	1
24	Cartridge Retaining Ring	-	1
7	AIR CHAMBER CAP (Standard)	995554	1
8	Cage Nut	995508	1
10	5.00" Pilot Adapter Ring	104971	1
11	T55 Plus Torx Bit	994352	1
