Number Found: 1
Comments: Applicable to both 2.56" and 5.00" Fan Pilots. Replaces Q995569, 995669, 994353, 994902 and 995609.

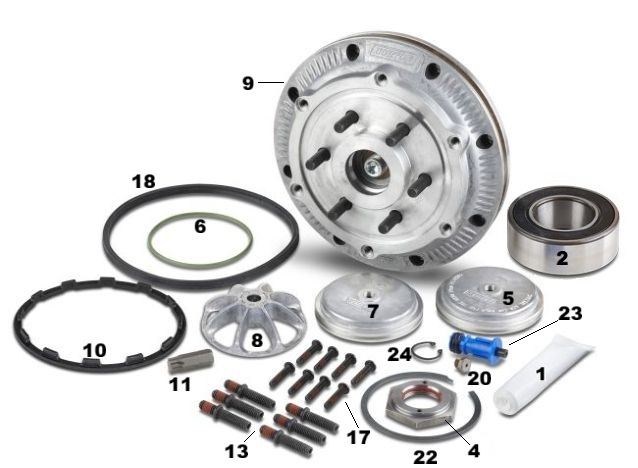

| Item | Description | Part No | Qty |
|---|---|---|---|
| 13 | 5.00" Pilot Stud Kit | 995605 | 6 |
| 11 | T55 Plus Torx Bit | 994352 | 1 |
| 10 | 5.00" Pilot Adapter Ring | 104971 | 1 |
| 8 | Cage Nut | 995508 | 1 |
| 7 | AIR CHAMBER CAP (Standard) | 995554 | 1 |
| 24 | Cartridge Retaining Ring | - | 1 |
| 23 | Air Cartridge Assembly | 995634 | 1 |
| 22 | Air Cap Retaining Ring | - | 1 |
| 20 | Face Seal | - | 1 |
| 18 | Air Chamber Seal | - | 1 |
| 17 | Button Head Liner Screws | - | 8 |
| 9 | Quick Kit Clutch Pack Assembly | - | 1 |
| 6 | Air Cap O-Ring | - | 1 |
| 4 | BEARING NUT | - | 1 |
| 2 | SHEAVE BEARING | 995548 | 1 |
| 1 | O-RING LUBRICANT | 17252 | 1 |
